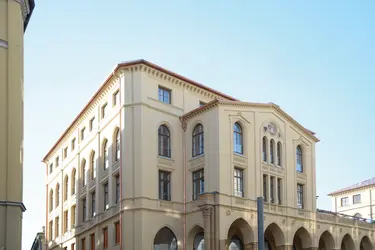

Andreas Schubert building in Dresden renovated with insulating plaster.

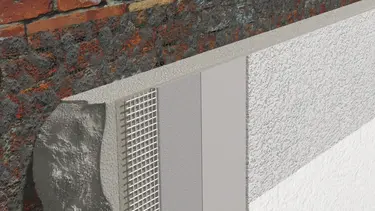

Solutions for technical challenges

Internal insulation is often the better, and sometimes the only, solution for reducing energy losses and increasing living comfort. However, unclear specifications and technical challenges can complicate the process. Here we offer you specific application aids for these challenges.



Technical drawing for processing interior insulation with insulating plaster - connection to window and door reveals.

Interior insulation Insulating plaster Connection window and door reveals

  1. Insulating plaster with spray coating, HASOLAN or HASIT 250

  2. Silicate deep penetrating primer HASIT PP 201 SILICA LF

  3. Glass fibre reinforcement mesh with Fixit 223 special embedding mortar, min. 5 mm

  4. Mineral finishing plaster and colour coat

  5. SR grooved belt compressible

  6. End profile with fabric

  7. Welnet or Armanet Distanet

  8. Plaster base e.g. Wedi panel

  9. Edge profile

  10. Corrugated or roofing felt

Technical drawing for processing interior insulation with insulating plaster - connection of a window sill in solid masonry.

Interior insulation Insulating plaster Connection window sill in solid masonry

  1. Insulating plaster on sprayed plaster, HASOLAN or HASIT 250

  2. Silicate deep penetrating primer HASIT PP 201 SILICA LF

  3. Reinforcing mesh with Fixit 223 special embedding mortar, min. 5 mm

  4. Mineral finishing plaster and colour coat

  5. SR grooved belt compressible

  6. End profile with fabric

  7. Separating fleece



A. External putty joint and filling by window manufacturer

B. Foaming by window manufacturer

C. XPS glued tightly under window sill + glued into masonry without cavities

D. Mortar cavity-free (HASIT 605)

Technical drawing for processing interior insulation with insulating plaster - connection to wooden beam ceiling.

Interior insulation Insulating plaster Connection to wooden beam ceiling

  1. Insulating plaster on sprayed plaster, HASOLAN or HASIT 250

  2. Silicate deep penetrating primer HASIT PP 201 SILICA LF

  3. Reinforcing mesh with Fixit 223 special embedding mortar, min. 5 mm

  4. Mineral finishing plaster and colour coat

  5. SR grooved belt compressible

  6. End profile with mesh

  7. Welnet or Armanet Distanet

  8. Corrugated or roofing felt

Technical drawing for processing interior insulation with insulating plaster - connection to concrete floor.

Interior insulation Insulating plaster Concrete floor connection

  1. Insulating plaster on sprayed plaster, HASOLAN or HASIT 250

  2. Silicate deep penetrating primer HASIT PP 201 SILICA LF

  3. A. Air at least 1 cm for circulation

  4. Reinforcing mesh with Fixit 223 special embedding mortar, min. 5 mm

  5. Mineral finishing plaster and colour coat

  6. Edge insulation strips

  7. Mounting discs

B. Impact sound insulation

Technical drawing for processing interior insulation with insulating plaster - design for cabinet installation.

Interior insulation Insulating plaster for cabinet installation

  1. Insulating plaster on sprayed plaster, HASOLAN or HASIT 250

  2. Silicate deep penetrating primer HASIT PP 201 SILICA LF

  3. Reinforcing mesh with Fixit 223 special embedding mortar, min. 5 mm

  4. Mineral finishing plaster and colour coat

  5. Mounting cuboid

A. Air at least 1 cm for circulation

Technical drawing for processing interior insulation with insulating plaster - application in the area of the back wall of the washbasin (max. 1.00 × 1.60 m).

Interior insulation Insulating plaster for washbasin rear wall max. 1 m x 1.6 m

  1. Insulating plaster on sprayed plaster, HASOLAN or HASIT 250

  2. Silicate deep penetrating primer HASIT PP 201 SILICA LF

  3. Reinforcing mesh with Fixit 223 special embedding mortar, min. 5 mm

  4. Mounting cuboid

  5. Printing plates

  6. Impact dowel H1 eco through the fabric

A. Slab coverings max. 1600 cm²

Technical drawing for processing interior insulation with insulating plaster - execution for electrical installations.

Interior insulation Insulating plaster Electrical installation

  1. Insulating plaster on sprayed plaster, HASOLAN or HASIT 250

  2. Silicate deep penetrating primer HASIT PP 201 SILICA LF

  3. Reinforcing mesh with Fixit 223 special embedding mortar, min. 5 mm

  4. Mineral finishing plaster and colour coat

A. Fill old empty box with insulating plaster

B. Eldoline electrical box

C. Pipes on the warm side

[Translate to English:] Technische Zeichnung zur Verarbeitung von Negativabdichtung und Wärmedämmung mit HASIT CALSOLAN® und Wärmedämmputz.

Negative waterproofing and thermal insulation with HASIT CALSOLAN® and thermal insulation plaster

1. HASIT Calsolan SF

2. HASIT Optiflex 1K light / 2K, double-layered

3. Comb filling  HASIT 250 RENOPLUS

4. Thermal insulation plaster HASIT FIXIT 222,
HASIT 242, 253 or 267

5. Setting agent HASIT PP 201 LF

6. Reinforcement filling HASIT FIXIT 223*) or
HASIT 250 RENOPLUS

7. Finishing plaster, for example HASIT PF 870 or PF 880

8. Coat of paint  HASIT PI 805 KALSIT IN

9. Cove molding with HASIT Calsolan SF

10. HASIT sealing tape AS 910

11. Foam mortar HASIT POR 8040

12. Foam mortar HASIT POR 9140



*) Reinforcing filler for aerogel high-performance insulating plaster
